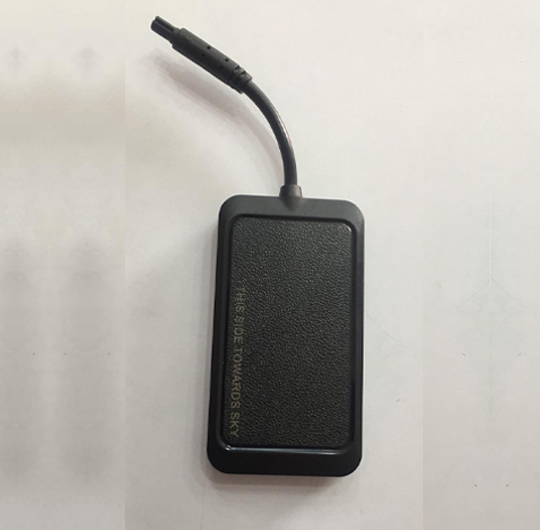

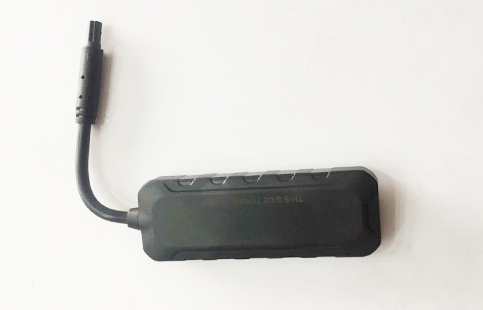

HT-Basic Mini GPS tracker

It is perfect for all two wheelers and four wheelers and for rental vehicles and logistics , HT Basic is light in weight and compact It is perfect for routing vehicles and its monitoring is very easy . it is hidden vary easily to the vehicle even driver will never know until you tell them .


Feature
  • GPS+LBS positioning Allow the location to be pinpointed in real time or periodically
  • Hidden LED Whoever use your car will never know he or she's being tracked
  • IPX5 waterproof Water-resistant to ensure stable operation in tough environment
  • Multiple alarms Instant alerts for overspeed, low battery, bibration, etc
  • Compact size Be able to place it in various locations throughout the vehicle
  • ACC detection Be aware of the ignition status whenever you need

Spec
GSM Specification
GSM frequency 850/900/1800/1900 MHz
GPRS Class 12, TCP/IP
Memory 32+32Mb
Phase error RMSPE<5,PPE<20
Max Output GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3Bm
Max frequency error ±0.1ppm
Receive sensitivity Class II RBER2%(-102dBm)
GSM Specification
GPS chipset High sensitivity GPS chip
Frequency L1,1575.42MHz C/A code
GPS channel 66
Location accuracy <10 meters
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF(open sky) Avg. hot start≤1sec
Avg. cold start≤32sec
Functional & Package
GSM/GPS antenna Built-in quad band GSM antenna, GPS ceramic  antenna
LED indicator GPS(blue),GSM(green)
Working voltage/current 9-36VDC/32mA(12VDC)18mA(24VDC)
Standby current ≤5mA
Operating temperature -20℃～ 70℃
Waterproof rate IPX5
Battery 100mAh / 3.7V  industrial grade lithium battery
Device weight 26.6g
Device dimension 73.8(L)× 25.9(W)× 12.2(H)mm
